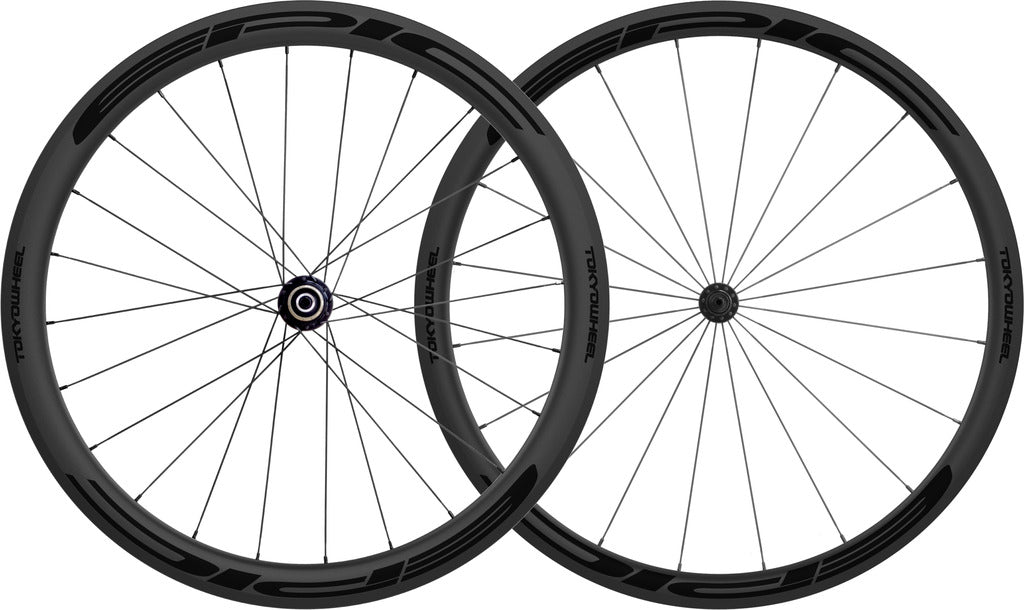

Lightweight Aero Wheel System
Is this wheelset right for you?
The EPIC 3.4 is the ideal wheelset for road races involving a lot of climbing or attack sprinting. It's great for gaining speed out of criterium racing corners. The incredibly stable handling keeps things safe when riding in a peleton, and the light weight, high stiffness wheel system is great for breakaways or catching the wheel of a passing rider.
For the best triathlon time savings, we generally recommend a higher rim depth wheelset, like the EPIC 7.10 , but if you are looking for a wheelset for very windy conditions the EPIC 3.4 is for you. Choose this wheelset if your looking for an ultra stable lightweight wheelset for windy days or courses with significant climbing.
The EPIC 3.4 is the perfect recreational wheelset. You will love the dramatic increase in speed over traditional wheels. The highly stable EPIC 3.4 is great for side-by-side or paceline riding in group rides. The lightweight and super stiff rim design will help you on climbs and when sprinting to catch, or break away, from other riders.
A Different Approach To Wheel Design
Tokyowheel System-Optimized™ wheels have distinctly different front and rear rims to maximize performance.
Unique Carbon Fiber Manufacturing That is Lighter and Stronger
69 folded layers of carbon fiber arranged in a stronger, lighter construction only possible with System-Optimized™ wheels.
2-Way Clincher Tubeless.
Tubes or No-Tubes - You Choose.
Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.
*EPIC 60 Shown
DuraHeat-R™ High-Temperature Carbon
Better Braking Performance.
A three part technology for superior braking with carbon rims.
2 Performance Options

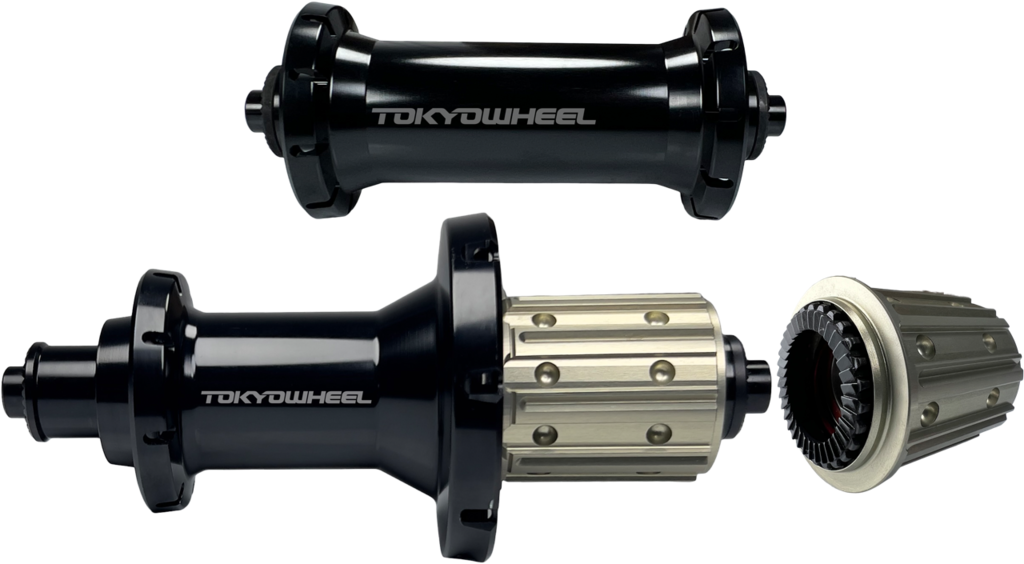

Tokyowheel VAPOR 3 Hubs (DT Swiss Style 36 Tooth Star Ratchet + Standard Premium Bearings) + Straight-Pull Pillar Wing 20 Spokes (New Better Spoke Than Sapim CX-Ray)
EPIC 3.4 Pro
Lighter 3.4 Pro Rims + Tokyowheel VAPOR 3 Pro Hubs (DT Swiss EXP Style 60 Tooth Star Ratchet + Premium Ceramic Bearings) + Straight-Pull Tokyowheel Carbon Spokes
This wheelset has been certified and approved by the UCI (Union Cycliste Internationale), for use in UCI sanctioned road races.
These wheels are also certified for use in ITU (International Triathlon Union) sanctioned triathlons.
What's In The Box
All The Accessories You Need
Tokyowheel SuperStiff™ Quick-Release Skewers, CeramicStop™ Carbon Brake Pads, Nylon Rim Strips, and Valve Extensions.
|Weight*||Pro: 1190g, Standard: 1415g|
|Rim||700c Carbon Clincher|
|Rim Weight*||Pro:[ Front: 400g, Rear 440g], Standard:[ Front: 450g, Rear 490g]|
|Rim Depth||Front: 33mm, Rear: 43mm|
|Internal Rim Width||18mm|
|Brake Track Width||25mm|
|Max Width||Front: 28mm, Rear: 26.5mm|
|Carbon Finish||Matte UD Carbon Fiber|
|Hub||VAPOR 3 or VAPOR 3 Pro|
|Hub Axle Width||Front: 100mm, Rear: 130mm|
|Free Hub||Shimano/SRAM HG, Campagnolo, SRAM XDR, Shimano Microspline|
|Bearing Type||Standard: Cartridge - Steel Balls, Pro: TPI Cartridge - Ceramic Balls|
|Bearing Numbers||VAPOR 3 (Pro): F 6903LU (2), R 6802LU (1), 6802LLU (1), 6902LB (1), SCO2T01LU/15|
|Spokes||Standar: Pillar Wing 20 Striaght-Pull (Black), Pro: Tokyowheel Carbon Straigh-Pull (Carbon)|
|Spoke Count||Front: 20, Rear: 24|
|Spoke Pattern||Front: Radial, Rear: 8 Radial, 16 2x:|
|Spoke Lengths||VAPOR 3 (Pro): F 270, R 258/264|
|Max spoke tension (kgf)||F 125, R 65/130|
|Nipples||Pillar Brass (black)|
|Recommended Tire||Continental GP5000s (23mm x 700c or 25mm x 700c)|
|Recommended Tire Pressure||110 psi|
|Max Tire Pressure||140 psi|
|Rider Weight Limit||242lbs / 110kg|
|Included Accessories||Titanium QR Skewers (for QR hubs), Nylon Rim Strips (applied), Brake Pads, Valve Extensions, Spacer|
|Generation||Standard: 3rd, Pro: 4th|
|Note||* Weights are subject to a +/- 5% variance|
